6.5 Data catalogs

• At this stage, the lead grantee needs to be able to identify where the data is coming from, the format it is in, and what it consists of. In addition, the lead grantee needs to have a good idea of the likely journey that the data will go through, asking questions such as:



  • Does all the data originate with this project?
  • Is some data being collected from other projects?
  • Is some data being purchased or sourced from elsewhere?



  This will allow the lead grantee to plan how the data and descriptive metadata will be captured.

The schema is a set of metadata properties that will be used primarily to ensure that the dataset is findable by those that need to access it. This is also called descriptive metadata, and if the lead grantee is not quickly able to put a schema together, the best alternative is to borrow a schema from elsewhere.

Building your own schema means identifying the key metadata properties that will be used during the course of the project. This can be an iterative process and will probably involve most of the project team, particularly the project manager, the project officer, and the research scientists.

DCAT is a vocabulary designed to facilitate finding metadata. It is a set of the words that are likely to be used to describe the data held inside a data catalog (i.e., metadata registry and repository). This is a good place to start in selecting particular properties that will be used to describe the dataset. A lead grantee could simply use DCAT, or utilize it as a starting point for building a schema.

Some example properties that maybe attached to each dataset are:

• Title
• Description
• Access rights
• Contact point
• Date of first release
• Date of latest release

All of these can be found in DCAT. One may want to include properties from other vocabularies or ontologies, such as ‘was attributed to’, which is defined in PROV, or simply ‘publisher’, which is defined in Dublin Core. By deriving and referencing metadata terms and definitions from existing schemas, vocabularies and ontologies one is making the metadata and data more interoperable and reusable.

In some cases, one may want to add properties that are not found in these common reference sources, or one may wish to change aspects of their definition. One would expect to arrive at a schema of 20-50 descriptive elements, divided into sections, with the schema defined in a formal standard format, such as the JSON schema shown below:

A schema could be defined in another suitable language, such as XML Schema or OWL, or it could simply be written in a word document, although this latter option is not practical for machine reading. Using a specific language such as JSON Schema allows the ambiguity present in natural language to be eliminated. The key metadata is then available in a machine readable format, which can be read into the data catalog, or at least translated in an unambiguous fashion.

It is expected that some of the descriptive metadata will be common to many contexts, while some may be context-sensitive, and defined with a subject area in mind. Most contexts already have sample metadata schemas mapped out that can be used as a basis for the descriptive metadata schema.

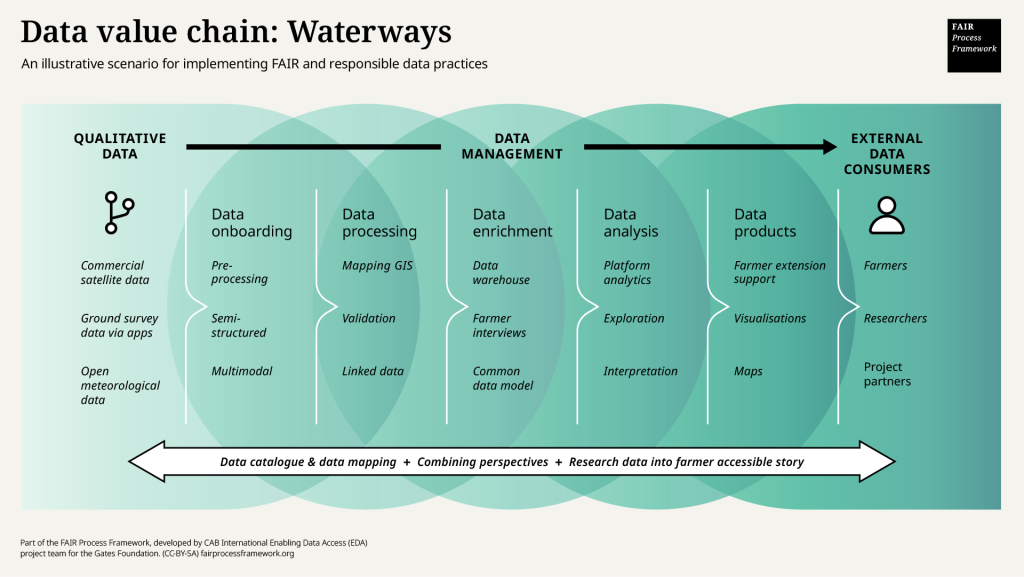

Onboarding metadata is discussed in Project SIS and in Waterways.

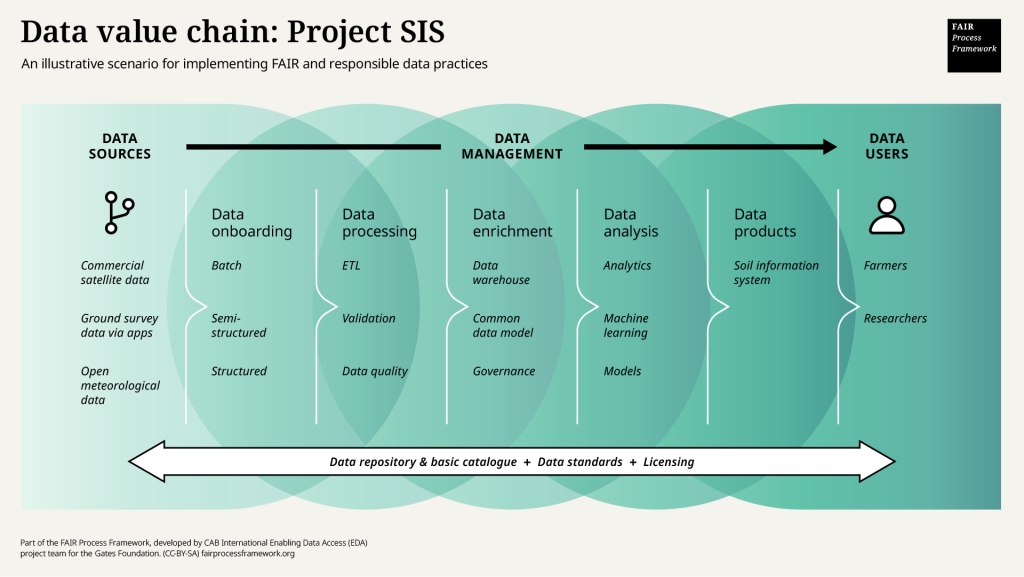

In Project SIS, we have a basic metadata schema that in some data catalogs, such as MDW Exchange (see Figure 3.1), will be displayed as a dashboard, while in others, such as the OSF repository, it will be displayed in different areas (see Figure 3.2).

First see the descriptive metadata, assembled in an excel spreadsheet:

• The goal of this step is to ensure that each data element is named in an unambiguous way, and is ideally linked to common open vocabulary. This may not be possible with data obtained from third-party sources, but it is possible for any data generated in the project. It allows the process of collecting and then cataloging data to be clearer and better defined, which in turn improves interoperability, communication and data mapping.



  As a first example, we can see that DCAT is a vocabulary for describing data catalogs. It is a set of words that are used in this context. In the same way, the context of any project using agricultural data can be best described using a vocabulary of terms relating to the context. Each dataset should only use terms that come from the controlled vocabulary. That way, data being collected must be described in a particular way.



  For instance, if one is collecting geographical data, then it may be sensible to restrict users to using terms found in the Getty Thesaurus of Geographic Names (TGN), which removes any ambiguity in describing a particular region. Alternatively, one can build up a vocabulary for use with the project, using definitions taken from online terminologies such as these. The easiest way to start would be to select an available online vocabulary, and then add as a base conceptual model to the catalog, so that when data elements are needed, they can be built using this vocabulary. A selection of open vocabularies is given below:



  1. Agronomy Ontology (AgrO)
  AgrO describes the agronomic practices, techniques and variables used in agronomic experiments.



  2. AgroPortal
  AgroPortal is a repository of agricultural ontologies and controlled vocabularies. It provides a platform for accessing, annotating and aligning ontologies related to agronomy and agriculture.



  3. Agricultural Thesaurus and Glossary (AGROVOC)
  AGROVOC is a multilingual thesaurus covering agriculture, forestry, fisheries and related domains. It is developed and maintained by the Food and Agriculture Organization (FAO) of the United Nations.



  4. Plant Ontology (Planteome)
  Planteome is a controlled vocabulary and ontology that provides standardized terms for describing plant structures, growth stages, and developmental processes.



  5. Environment and Sustainability Ontology (EnvO)
  EnvO is an ontology that covers environmental and habitat-related concepts. It is relevant to agriculture for describing the environmental context of farming practices.



  6. Crop Ontology
  Crop Ontology is designed to standardize and integrate crop-related information, including traits, germplasm, and experimental conditions.



  7. Semantic Sensor Network Ontology (SSN)
  SSN is an ontology for describing sensors, observations, and measurement processes. It is applicable in agriculture for modeling sensor data related to environmental monitoring.



  The choice of vocabulary may limit and restrict the choice of data catalog. Ideally, freedom to choose or import the ontology of choice will make the job of defining the data heading (i.e., the data elements) much easier, and will enable automatic interoperability.



  Some data catalogs will already have ontologies built in, such as the agronomy ontology, either in a fixed form or as a base so that other definitions can be added. Built-in vocabularies and flexible vocabularies make the process of building a vocabulary much easier.

• This step involves considering which datasets and data elements should be available to whom. Are there data elements that need to be private and not public? Should some people in your team only have access to some of the data? Start by making a list of different levels of access, and then assign people or roles to each of the different levels. Also, different datasets can be added to different groups, and you may want to assign different groups to different types of dataset; for example, perhaps only some members of the team will handle the third-party data.



  Typically, one would use a sensitivity-based scheme for the metadata in the data catalog such as the one shown below:

  • Public: Freely accessible by anyone. Descriptive metadata (as defined in the schema) will be available, whereas other aspects, including the raw data, will probably require access control.
  • Internal: Accessible only within an organization or specific group. Metadata might disclose internal processes or personnel information.
  • Confidential: Requires authorized access, due to its sensitive nature. Metadata could reveal proprietary information or trade secrets.
  • Restricted: Highly limited access due to criticality. Metadata could expose security or personal data.



  In many cases, only two or three of these levels will be needed, although in certain circumstances, one may want to add regulatory aspects, especially if dealing with data falling under a specific framework, such as GDPR or HIPAA. It is also key to consider data lineage, especially when handling data from third parties that may have additional licensing imposed on any merged datasets.



  If the data is available under a public, share-all type license, one may make it available in an open repository. If not, one will need to add in a role-based access security model.

Key decisions are fairly complex and are based around the project itself.

As a guide, consider the issues below:

1. Does the data catalog handle all the descriptive metadata in my schema?

2. Can the data catalog relate different data elements (fields) to a common data model?

3. Can the data catalog relate different data elements to a common vocabulary or ontology?

4. Can the data catalog record both structural and descriptive metadata?

5. Can the data catalog provide, or link to, a DOI registry?

6. Does the data catalog have a good mechanism for tagging data elements and searching for them?

7. Does the data catalog have a good mechanism for accessing the data and metadata using an API?

8. Does the data catalog have a role-based security model?

We briefly examine the OSF data repository and the Global Agricultural Research Data Innovation Acceleration Network (GARDIAN) in Step 6.4, since they are widely used in the sector, with some references to the Metadata Exchange (MDW), a catalog used in the UK medical and government sector.

The following comprises a quick guide to how these different aspects are handled in each of the three data catalogs.

• Data Catalogs differ enormously in their features, technology set, and the way they are set up, as the previous section shows. However, there are some key points to bear in mind when setting up a data catalog and/or data repository. Most have been covered in the previous sections, but are repeated below.



  Data content

  • Develop a common data model (CDM): Define the structure and meaning of your data using a well-documented CDM. This ensures consistency, facilitates data sharing, and enables easier analysis across different experiments.
  • Adhere to existing data standards: Consider incorporating established data standards relevant to agriculture, such as the Agronomy Ontology or SensorML. This enhances interoperability and exchange with other research projects.



  Metadata management

  • Capture comprehensive metadata: Describe your data comprehensively using relevant metadata standards like the Dublin Core or the Agricultural Data Commons (ADC) metadata schema. This makes your data discoverable and interpretable by others.
  • Standardize metadata: Define clear guidelines and templates, such as a separate metadata schema for capturing metadata to ensure consistency and completeness across datasets.

  Data organization and access

  • Logical organization: Organize data logically, considering factors like experiment type, crop variety, location and date. This facilitates easier browsing and retrieval.
  • Version control: Implement version control to track changes made to data and ensure reproducibility of research findings.
  • Access control: Define appropriate access levels to ensure data security and privacy while enabling controlled sharing with collaborators or the broader research community.



  Documentation and user support

  • Clear documentation: Provide clear documentation explaining the data catalog/repository, including:
  • The purpose and scope of the data collection.
  • Description of the data model and any applied standards.
  • Instructions on accessing and using the data.



  Sustainability and interoperability

  • Long-term sustainability: Plan for the long-term sustainability of your data catalog/repository, including considerations for hardware, software, and personnel resources to maintain and update it.
  • Interoperability: Ensure your data catalog/repository is interoperable with other agricultural research platforms or data portals. This enables broader data sharing and collaboration within the research community.

  Additional considerations

  • Security: Implement robust security measures to protect sensitive data, such as user authentication, authorization and encryption.
  • Compliance with regulations: Ensure compliance with any relevant regulations regarding data privacy and biosecurity, especially when dealing with sensitive research data.
